Wireless Microphone

Mipro ACT-818

Choose Options

Price
Receiver + ACT-80H RM 6,000 each
Receiver + ACT-80T RM 6,000 each
Price
Receiver + ACT-80HC RM 7,000 each
Receiver + ACT-80TC RM 7,000 each
Price
Receiver + TA-80 RM 6,500 each

  • EIA standard rack-mountable receiver with metal chassis for excellent heat dissipation and RF shielding.
  • A full-color VFD. Quick and easy system setup via a single rotary control knob.
  • Enhanced RF circuitry improves anti-interference characteristics and system compatibility.
  • New digital diversity receiving technology.
  • Full-range sound quality is not affected by the strength of RF signals or operating distance.
  • Proprietary DSP audio processor and A/D converter.
  • Proprietary 256-bit encryption prevents unauthorized listening.
  • 10 built-in SmartEQ™ microphone capsule equalization presets suit artists’ preferences.
  • 10 built-in digital anti-feedback SmartEQ™ presets for minimizing feedback.
  • Optional MIPRO RCS2.Net software allows real-time network remote-controlling and monitoring of 64 systems.

    • Datasheet ACT-818 Datasheet [PDF]
    Channel Single
    Chassis EIA Standard 19" 1/2U
    Receiving Mode Digital Diversity
    Frequency Range UHF 480 – 960 MHz (country dependent)
    Bandwidth 64MHz
    Channel Grid 25 kHz
    Channel Set-up Scan & ACT sync
    Audio Sampling 24-bit / 44.1 kHz Rate
    Audio Frequency Response 20 Hz – 20 kHz
    Encryption 256 bit
    Audio Compression 2nd generation DSP inertial coding
    Latency 2.7 ms
    S/N Ratio (analog output) > 115 dB(A)
    T.H.D. < 0.03% @ 1 kHz
    Sensitivity 12 dBµV at S/N ≒ 118 dBA (digital output)
    Image & Spurious Rejection > 85 dB
    Audio Output Balanced XLR , Unbalanced 6.3 mm (1/4 ")
    Analog Output Switch Mic / Line
    Audio Interface AES digital output, analog transmission
    Digital Equalizer 10 built-in SmartEQ™ & 10 built-in digital anti-feedback SmartEQ™
    PC Interface USB or RS-232 interface. Proprietary MIPRO ACT-BUS
    Display Full-color VFD
    Battery Meter Transmitter battery status
    Antenna Input 2 × 50Ω TNC female connector. Detachable. 50Ω TNC female connector provides bias for the MIPRO antenna systems.
    Power Supply External adaptor
    Dimensions (W × H × D) 210 × 44 × 230 mm | 8.3 × 1.7 × 9 "
    Weight Approx. 1.1 kg | 2.4 lbs
    Operating Temperature -10 – +60℃
    Note Refer to actual product in the event of product discrepancy. Frequency range and maximum deviation comply with the regulations of different countries.
    Price

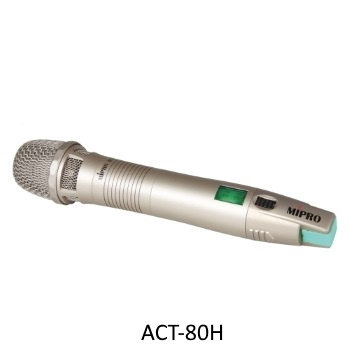

    ACT-80H UHF Handheld Mic RM 3,700

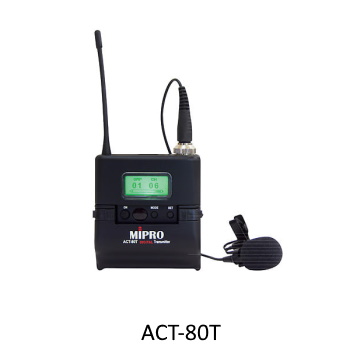

    ACT-80T UHF Bodypack Clip Mic RM 3,700

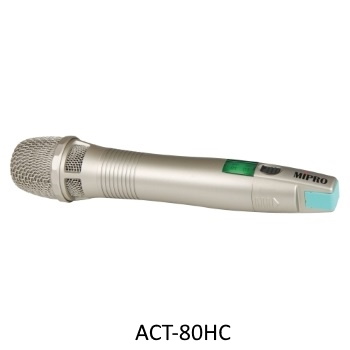

    ACT-80HC UHF Handheld Mic RM 3,800

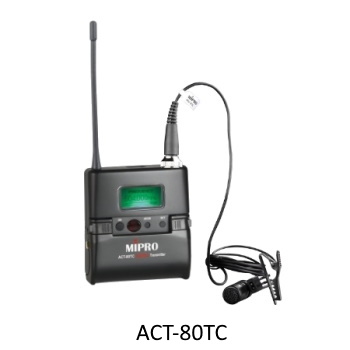

    ACT-80TC UHF Bodypack Clip Mic RM 3,800
    TA-80 Digital miniature wireless plug-on transmitter RM 5,000
    MU-53HN-XLR Headworn Mic RM 760
    AT-20 Antenna RM 160
    Power Adapter RM 600
